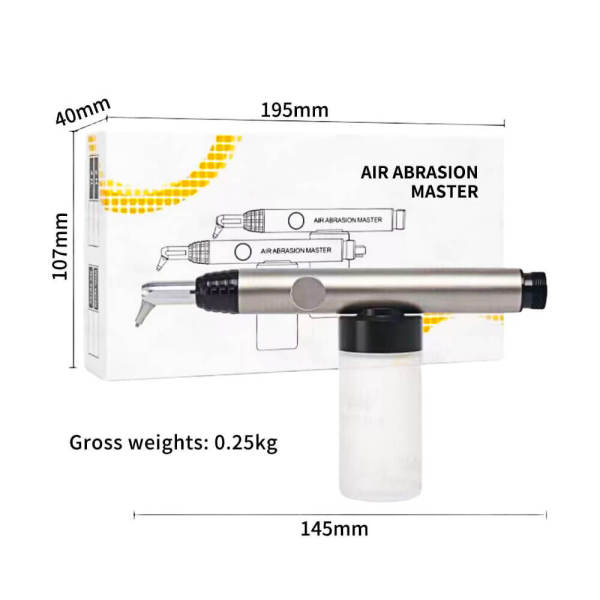

Dental Abrasion master extraoral sandblasters dental bonding system Item NO.: 16010403

PRODUCT DESCRIPTION Aluminum oxide microblaster is a handheld dental sandblasting unit for intraoral sandblasting and dental lab applications.Surface area and surface reactivity are dramatically increased for maximum bonding. The Aluminum oxide microblaster have stainless steel construction and a replaceable carbide tip that rotates 360 degrees. The Aluminum oxide microblaster unit is fully autoclavable (except removable jar), and the Aluminum oxide microblaster has only an autoclavable nozzle. INSTALLATION The Aluminum oxide microblaster requires compressed air of 40 to 100 psi (2.6 to 6.6 bars) at 1 cfm (30ccm/m).There is a significant reduction in sandblasting action as the pressure is reduced below 60 psi.Bottled gas such as C0 or highly comp-ressed air can be used with a regulator. oxygen, flammable,or toxic gases must not be used. Dehydrated air is not required; however, large particles in the air line can plug up the Aluminum oxide microblaster. A water trap filter is recommended. Do not use Teflon tape to seal pipe joints. HOOK UP IN OPERATORY Using the quick disconnect kit: 1. Locate the air pressure supply line close to the desired work area. 2. Turn off air. Cut the air line and install the tee fitting. 3.The female disconnect part of the fitting contains the auto-matic shut off and may be panel mounted. 4. Install the male end of the quick disconnect onto the Micro etcher line. 5. The Aluminum oxide microblaster includes a rear adapter for a direct connection to a high speed handpiece line. * If the air supply line from the compressor to the chairside cart is not 1/4" 0D polyethylene tubing, special fittings are required.Danville Materials carries fittings for 1/4", 3/8", 1/2" copper and 3/8" polyethylene tubing. HOOK UP IN LAB A laboratory stop cock may be used for the compressed air con-nection. The valve or cone assembly may be unscrewed so a tee may be installed. Or adapters are available with a female quick disconnect fitting or without a quick disconnect. HOOK UP KITS 1.Quick disconnect kits: These kits allow multiple connections in operatory and in the lab with a common connector. They are the preferred connection method due to the greater pressures generally available. 2.High speed handpiece line adaptors: Allow easy connection to 4-Hole. 2-Hole, Kavo & Siemans-Sirona Quick Couplers and EMS. Please note that pressures provided may be low, without readjusting. INDICATED USES ●Pit & fissure preparation. ●Tough stain removal from grooves. ●Crowns, bridges, posts and other restorations roughened for maximum bond. ●Existing amalgam, composite and porcelain can be etched intraorally. ●Intraoral porcelain repair and acrylic refacing. ●Orthodontic bonds and brackets roughening and cement removal for reuse. , Denture repairs. SAFETY ●. Do not spray into gingiva for risk of air embolism. , Protect eyes, nose & optical equipment. ●Have patient hold breath during intraoral spray, or use rubber dam. ●Clinical use which is not in accordance with the indicated uses listed in this manual should be avoided.
